Line Transmission Stringing Blocks Crossarm Mounted Stringing Block

  • 1
  • 2
  • 3

Brand Name : Linkai

Model Number : SHC-0.5,2

Certification : ISO CE

Place of Origin : NINGBO CHINA

MOQ : 5pcs

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 pcs / month

Delivery Time : 5-8 word days

Packaging Details : Carton

Name : Stringing block

Rated load : 2T

Features : Crossarm mounted

Weight : 2.3 kg

Materail : Nylon or Aluminum

Apply : Transmission line

Contact Now

Transmission Line Stringing Blocks Crossarm - mounted Stringing Block

Uses:Transmission Line Tower 0.5T And 2T Crossarm- Mounted Stringing Blocks

The cross arm mounted stringing blocks are used for installation small conductors on transmission line.

Model SHC rated load has 0.5T and 2T, breaking load 5KN, 20KN, suitable for conductor range size 10mm2,40mm2. the material can be aluminum or nylon.

Crossarm-mounted Stringing Block Data

Model Rated Load (KN) Breaking Load (KN) Conductor Size Range (mm²) O. D. of Sheave (mm) Weight (kg) Material Remark
10231 SHC-0.5 5 10 ACSR 25-120 Φ80 1.5 Aluminum
10232 SHC-2 20 40 ACSR 35-240 Φ120 3
10233 SHCN-0.5 5 10 ACSR 25-120 Φ80 1.1 Nylon
10234 SHCN-2 20 40 ACSR 35-240 Φ120 2.3

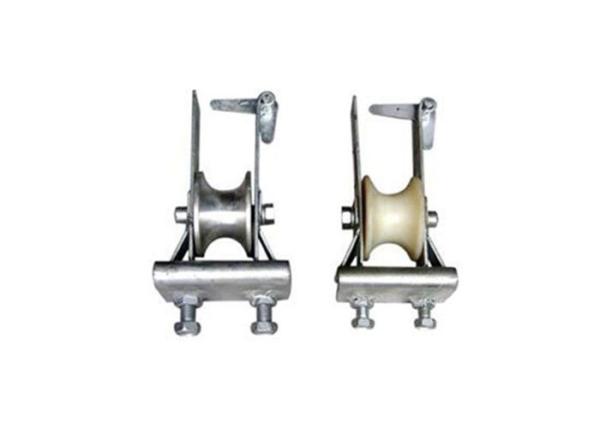

Crossarm mounted stringing block are made of aluminium alloy / MC nylon mounted on ball bearings
Crossarm mounted stringing block
Crossarm mounted stringing block are made of aluminium alloy/ MC nylon mounted on ball bearings; the groove is lined by a neoprene ring orby wear-proof interchangeable nylon or aluminium wheels. The frame is made of galvanizedsteel. The pulleys can be supplied with three types of connections: fixed(B),swivel-type(C) or with a hook supplied with safety lock(D). Grounding device orcomplete conductive sheaves can be supplied on demand.
Ordernumber Model Applicableconductor Ratedload (kN) Outsidediameterofsheave (mm) Weight(kg) Features
10231 SHC-80×50A LGJ120 5 Φ80 1.5
Aluminous
Wheel
10232 SHC-80×50A LGJ240 20 Φ120 3
10233 SHCN-80×50A LGJ120 5 Φ80 1.1 Nylonsheave
10234 SHCN-120×50A LGJ240 20 Φ120 2.3
